WSE-1720 Submerge-Multi

WSE-1720 Submerge-Multi

Purpose and Application

  • Agarose gel electrophoresis system for DNA
  • Analysis of PCR-amplified fragments
  • Separation of nucleic acids

Features

Hi-Speed(High voltage 135V) electrophoresis available、alarm timer function

  •  18V / 25V / 35V / 50V / 70V / 100V / 135V constant voltage
  • Timer setting up to 99 hr 99 min
  • Safety: When the lid is opened, no current flows.

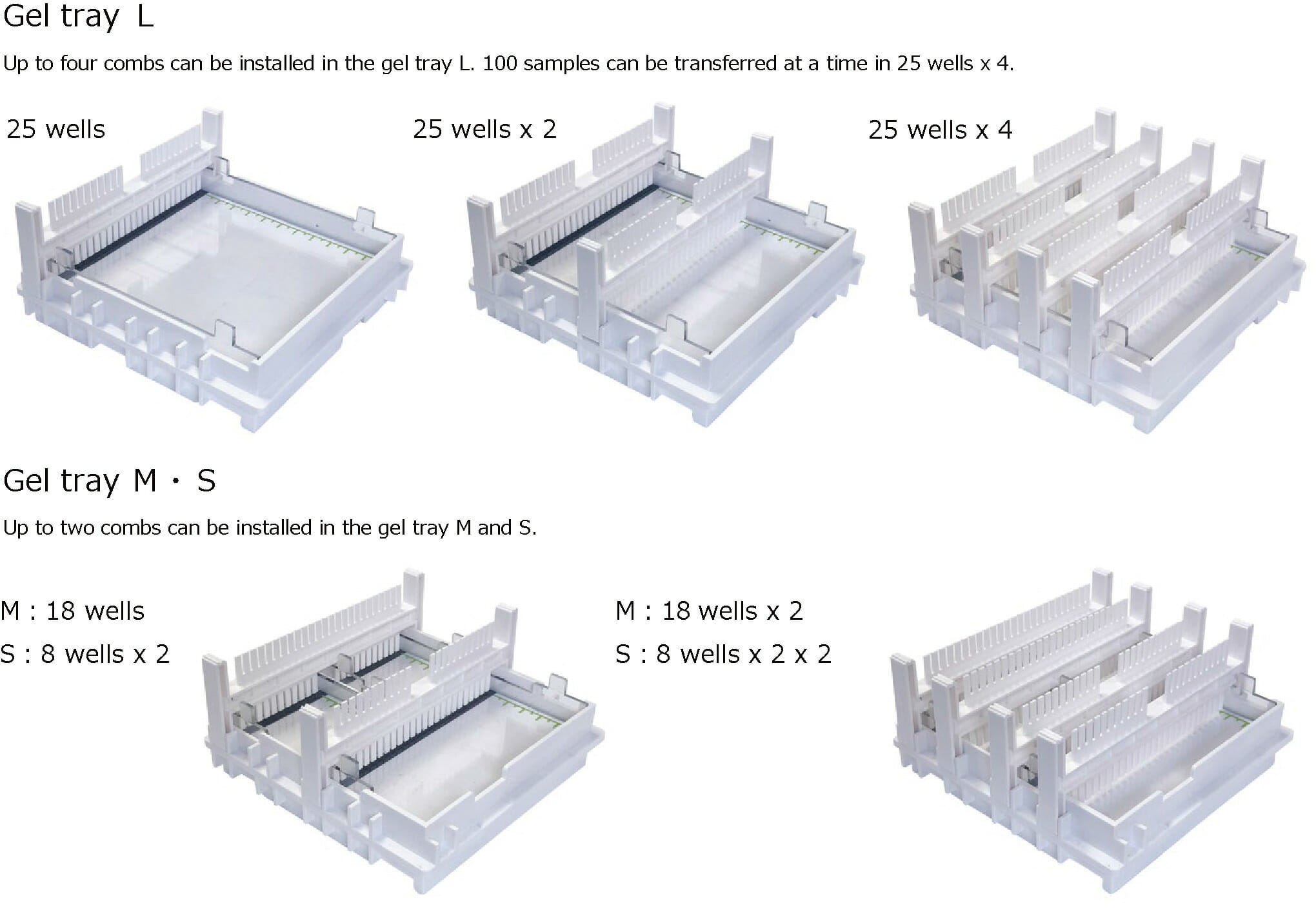

  • Including 3 types of Gel tray (60×60mm / 120×60mm / 120×120mm)
  • Heat resistant gel tray (-40℃ ~ 135℃)
  • Heat resistant comb (-20℃ ~ 115℃)
  • Including 4 types of comb (Wide: 25/18/13 wells, Small: 11/8/6/3/2 wells)

Description

Components

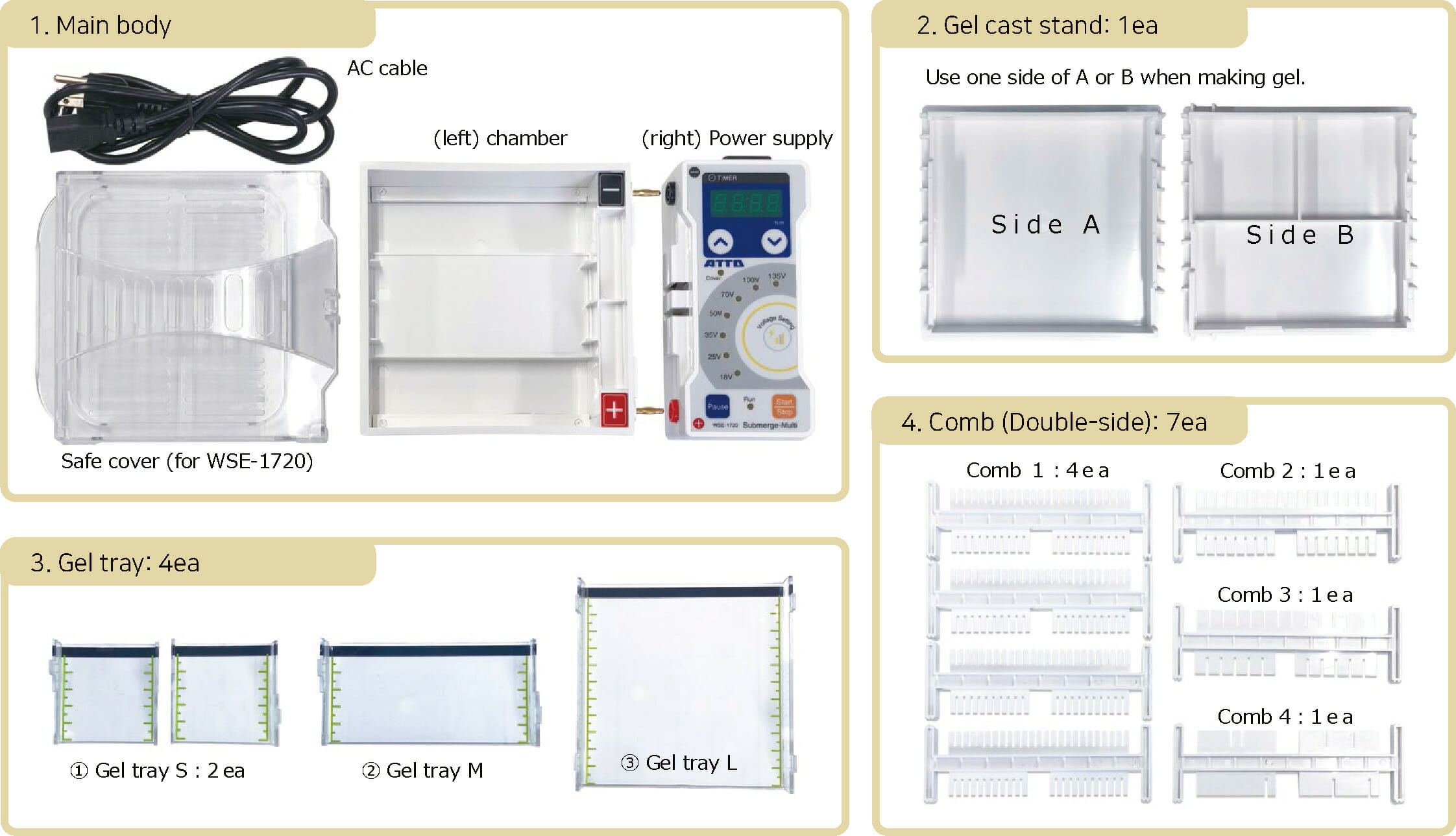

WSE-1720 components

Brochure

Specifications

 WSE-1720 Submerge-Multi
Output voltage18V / 25V / 35V / 50V / 70V / 100V / 135 V (7 types)
Gel sizeGel tray S: 60 x 60 mm
Gel tray M: 120 x 60 mm
Gel tray L: 120 x 120 mm
Buffer volume330~360 mL
PowerInput: AC100-110 V, 50/60 Hz
Timer0~99 hr 59 min (0 min: continuous), shows left time
DisplayLED (Hour, min, shows End Time, Error)
SafetyWhen the lid is opened, no current flows.
Dimensions260 (W) x 170 (D) x 68 (H) mm
Weight0.77 kg
ComponentMain unit (Electrophoresis chamber, with power supply unit and safety cover) 1 set, 4 types of Comb 7ea (Comb 1: 4ea, Comb 2: 1ea, Comb 3: 1ea, Comb 4: 1ea)Gel tray S 2ea, Gel tray M 1ea, Gel tray L 1ea, Gel cast stand 1ea, AC cable 1 ea

Ordering Information

Code No.DescriptionUnit
2322130WSE-1720 Submerge-Multi1 set
2322136Gel tray S (for WSE-1720) 2/pk1 set
2322137Gel tray M (for WSE-1720)1 ea
232138Gel tray L (for WSE-1720)1 ea
2322139Comb 25/11 wells (for WSE-1720) 4/pk1 set
2322140Comb 18/8 wells 1ea + Comb 13/6 wells 1ea + Comb 3/2 wells 1ea (for WSE-1720)1 set
2322141Gel cast stand (for WSE-1720)1 ea
2322142Safety cover (for WSE-1720)1 ea
