AE-6111 Agarose EP Kit

Purpose and Application
- Easy-to-use size, middle sized electrophoresis chamber
- For separation of nucleic acids as well as analysis of PCR-amplified fragments.
Features
- 120 x 160 mm gel size : sufficient migration distance
- Easy gel preparation with dam
- UV-transparent gel tray
- Newly shaped sample comb for sharp bands
- Applicable to multiple samples (option: comb, fixed stand)
- Double-edged comb with selectable well number and band width
- Supports multi-pipette spacing
- Buffer circulation possible through nozzle
Description

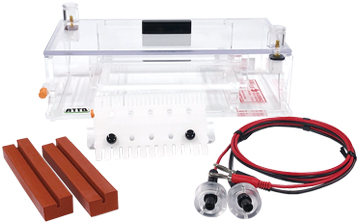

Components

Multiple samples

Adding comb sets allows for electrophoresis of multiple samples. The figure above shows the results of electrophoresis of 91 samples by adding 7 comb sets.
Operation Video
Brochure
Specifications
AE-6111 Agarose EP Kit | |
---|---|
Gel size | 120 (W) x 160 (H) mm, thickness up to 8 mm |
Comb | 1 mm 26-well / 13-well double teeth comb (well width: 3 and 6 mm) |
Buffer volume | 700 ~ 1,200 mL (According to gel thickness) |
Buffer circulation | Available to connect external circulator |
Material | Ultraviolet-transmissive hard Acrylic (Transmission: 80% / 300 nm), except platinum for electrodes, polycarbonate for safety cover, polypropylene for combs, silicone rubber for dams and drain tube, neoprene rubber for buffer inlet and outlet stoppers |
Dimension | 286 (W) x 150 (D) x 83 (H) mm |
Weight | 1.5 kg |
Component | Migration tank 1 ea, Safety cover 1 ea, gel tray 1 ea, comb 1 ea, dam 2 ea, comb stand with screws 1 ea, nozzle cap 2 ea, hexagon wrench 1 ea, safety lead wires with caps and screws in red and black 1 ea |
Ordering Information
Code No. | Description | Unit |
---|---|---|
2322178 | AE-6111 Agarose EP Kit | 1 set |
2328441 | Safety lead wires with caps and screws | 1 ea |
2393382 | Gel tray for AE-6111 | 1 ea |
2393383 | 1 mm 26-well/13-well double teeth comb | 1 ea |
2393384 | Comb stand with screws (120 mm wide) | 1 ea |
2393385 | Dam for AE-6111, 2 ea | 1 set |
2393330 | Nozzle cap for AE-6111, 2 ea | 1 set |
2393092 | Tube (φ11-7 mm) 1 m | 1 ea |
