WSE-5300 Printgraph CMOS I

Purpose and Application
- UV light source: 312nm for EtBr, SYBR Green/Safe stained gel, etc.
- White Flat LED: CBB stained gel, Silver stained gel, etc.
- CyanRed Epi: UV free! detecting much higher resolution fluorescence than Blue LED.
- Direct Print out: Connect with High quality digital graphic printer (SONY UP-D898MD)
- Save an image in the main unit, direct to USB memory and send Tablet (WiFi Control), etc.
Features
- 6 Megapixels high-resolution CMOS camera Gel Documentation System
- Quick response touch panel system
- UV free for Hazard free from an experiment (optional)
Description

6 Mega pixels high resolution CMOS camera Gel Documentation System
WSE-5300 Printgraph CMOS I is a detectable high-resolution image.

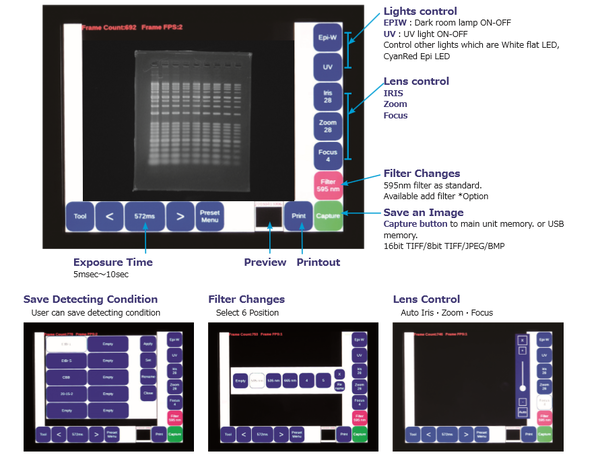

Quick response touch panel system
WSE-5300 Printgraph CMOS I is a quick response by a high-quality touch panel system.

UV free for Hazard free from experiment
ATTO original “CyanRed Epi” applied (optional). 510nm of Cyan excitation can detect EtBr (UV free)
Also, ATTO EzFluoroStainDNA which is highly sensitive fluorescence stain reagent instead of EtBr. (EtBr free)
Brochure
Specifications
WSE-5300 Printgraph CMOS I | |
---|---|
Camera | High resolution monochrome CMOS |
Resolution | High: 2927 x 2054, Standard: 1463 x 1027 |
File format | 16bit TIFF / 8 bit TIFF / BMP / JPEG |
Lens | x6 Auto zoom lens (Iris, Zoom, Focus) |
Monitor | 8 inch Touch LCD Panel |
Filter | 6 position, 595nm filter as standard (EtBr, EzFluoroStainDNA, SYBR Dye etc.) |
Camera view area | 45 (W) x 30 (D) mm ~ 260 (W) x 180 (D) mm |
Exposure time | 5msec ~ 10 sec |
White Flat LED | standard |
UV light | 312nm, Sample size: 200 (W) x 200 (D) mm for WSE-5300UV, WSE-5300F, WSE-5300A |
CyanRed Epi | Cyan: 510 nm, Red: 623 nm for WSE-5300CR, WSE-5300A |
Printer | SONY UP-D898MD (optional) |
WiFi LAN | IEEE802.11b/g/n |
Interface | USB 3 port / LAN 1 port |
Size | 305 (W) x 620 (H) x 450 (D) mm |
Weight | 28 kg |
Power | AC100-240 V |
Ordering Information
Code No. | Description | Unit |
---|---|---|
2305305 | WSE-5300UV Printgraph CMOS I UV model | 1 set |
2305308 | WSE-5300F Printgraph CMOS I UV model (+ 535 nm filter) | 1 set |
2305310 | WSE-5300A Printgraph CMOS I All-in-One model | 1 set |
2305225 | CyanRed Epi light source for WSE-5300 | 1 set |
2305232 | 665 nm LongPass filter for WSE-5300 | 1 ea |
2140202 | SONY UP-D898MD Thermal printer | 1 set |
2140913 | UP-110HG Printer paper 10 rolls | 1 box |
2195931 | Gel tray (194 x 164 mm) | 1 ea |
3535037 | T-8M UV lamp 8W (312 nm) 6 ea | 1 set |
