AE-6401 1mm Dual Mini Gel Cast
Purpose and Application
- Gel caster for ATTO Mini size gel
- Available for hand made gel casting of electrophoresis in the below
-
- SDS-PAGE
- nativePAGE
- Separation of Protein, purity determination, estimation of purified product and expressed protein
- Examination of purified product and expressed proteins
- DNA electrophoresis, Detection of PCR products
- Screening
- Experimental training for students or researchers
- Determination of enzyme form
Features
- Easy setting with specially designed seal gaskets and clips
- Compatible electrophoresis apparatus: ATTO Mini Gel Size Electrophoresis System (WSE-1150M PageRunAce, AE-6531M PageRun, AE-6530M mPAGE, AE-6500 Dual Mini Slab, WSE-1165 Mini-Slab)
※This gel cast includes plates whose total thickness is 7 mm, so Plate holder for Hand-Cast Gel are required.

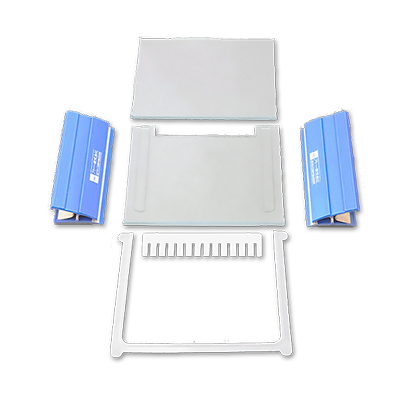

Components and Name of Each Part

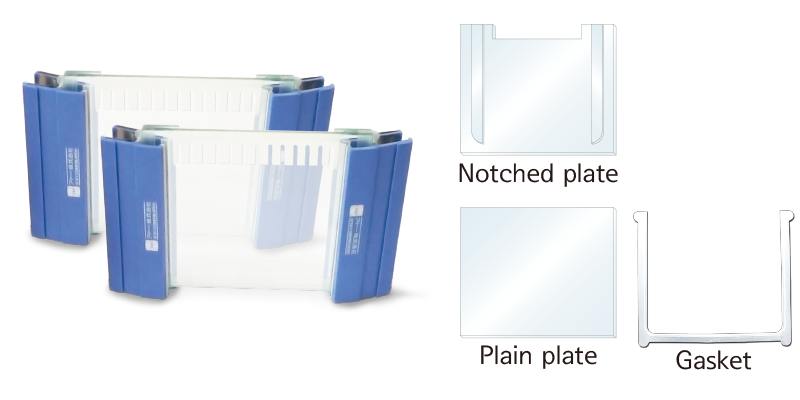

AE-6401 1 mm Dual Mini Gel Cast includes 2 sets of components in the picture
Combs
Operation Video
Specifications
| AE-6401 1mm Dual Mini Gel Cast | |
|---|---|
| Plate size | 120 (W) x 102 (H) mm, total thickness 7 mm |
| Gel size | 90 (W) x 80 (H), thickness 1 mm |
| Number of gel plate | Up to 2 plates |
| Sample comb | 12-well comb (Well 4.5 mm wide, about 30 μL/well), 1 mm thickness, PP molding |
| Materials | Glass, Silicone, Polypropylene, Polyvinyl chloride, Stainless steel |
| Dimension | 140 (W) x 15 (D) x 110 (H) mm (When it is assembled) |
| Weight | 0.54 kg (2 sets total) |
| Components | 1 mm Notched glass plate 2 ea, Plain glass plate 2 ea, 1 mm gasket 2 ea, Clip 4 ea, 1 mm 12-well comb 2 ea |
Ordering Information
| Code No. | Description | Unit |
|---|---|---|
| 2393010 | AE-6401 1mm Dual Mini Gel Cast (thickness 1 mm, for 2 gels) | 1 set |
| 2398230 | MAB-10 1 mm Notched Glass Plate, 2 ea | 1 pk |
| 2398232 | MB-00 Plain Glass Plate, 2 ea | 1 pk |
| 2398214 | RM-10 1 mm Glass Plate Set (MAB-10, MB-00, RMS-01 each 1 ea) | 1 pk |
| 2398237 | RMS-01 1 mm Seal Gasket, 3 ea | 1 pk |
| 2398239 | Rapidus Magnet Clip, 4 ea | 1 pk |
| 2398269 | RM10-12 1 mm 12-well Smiling-less Mini Comb, 2 ea | 1 pk |
| 2398224 | RM10-14 1 mm 14-well Smiling-less Mini Comb, 2 ea | 1 pk |
| 2398252 | RM10-18 1 mm 18-well Smiling-less Mini Comb, 2 ea | 1 pk |
| 2398255 | RM10-21 1 mm 21-well Smiling-less Mini Comb, 2 ea | 1 pk |
| 2394160 | 2-D flat Mini Comb, 2 ea | 1 pk |
