WSE-1190 Multi Mini-Slab Gel Cast

WSE-1190 Multi Mini-Slab Gel Cast

Purpose and Application

  • Up to 4 pieces of Mini-Slab size (90 x 83 mm, thickness 1 mm) gels can be made simultaneously with this gel casting kit
  • Available for hand made gel casting of electrophoresis in the below
      • SDS-PAGE
      • nativePAGE
      • Separation of Protein, purity determination, estimation of purified product and expressed protein
      • Examination of purified product and expressed proteins
      • DNA electrophoresis, Detection of PCR products
      • Screening
      • Experimental training for students or researchers
      • Determination of enzyme form

    Features

    • Easy setting: piling plates in gel caster and fixing by clips
      (Seal gasket is not necessary)
    • Max 4 pieces can be made
    • Glass plates only for this gel cast  are adopted so seal gasket is unnecessary
    • Attached to glass plate sets & combs for 4 pieces of gel
    • Compatible electrophoresis apparatus: ATTO Mini Gel Size Electrophoresis System (WSE-1150P PageRunAce, WSE-1100P PageRun-R, AE-6531P PageRun, AE-6530P mPAGE, AE-6500 Dual Mini Slab, WSE-1165 Mini-Slab)
      ※This gel cast includes plates whose total thickness is 5 mm, so Plate holder for PAGEL are required.

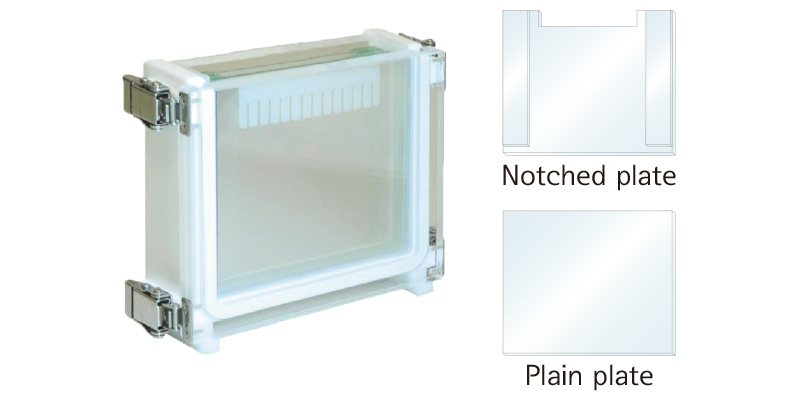

    Components and Name of Each Part

    Combs

    Operation Video

    Specifications

     WSE-1190 Multi Mini-Slab Gel Cast
    Gel size90 (W) x 83 (H) mm, thickness 1 mm
    Plate size120 (W) x 100 (H) mm, Total thickness 5 mm
    Number of gel plateup to 4 gels
    Sample comb12-well comb (Well 4.5 mm wide, about 30 μL/well), 1 mm thickness, PP molding
    MaterialsMain body (Acrylic, silicone, stainless steel, aluminium), Plate (glass)
    Dimension176 (W) x 45 (D) x 129 (H) mm
    Weight0.65 kg (main body only)
    ComponentGel cast main body 1 ea, glass plates 4 set (Notched plate 4 ea, Plain plate 4 ea), 12-well comb 4 ea, Dummy plate 1 ea, Spacer plate 6 ea

    Ordering Information

    Code No.DescriptionUnit
    2393031WSE-1190 Multi Mini-Slab Gel Cast1 set
    2393035Notched Glass plates for WSE-1190, 2/pk1 set
    2393036Plain Glass plates for WSE-1190, 2/pk1 set
    239303710 mm Dummy plate for WSE-11901 ea
    2393038Spacer plate for WSE-1190, 3/pk1 set
    2393034Silicone sheet 3/pk (22 x 103 mm 2 ea + 22 x 124 mm 1 ea) for WSE-11901 set
    23283751 mm 6-well comb for AE-6401/WSE-11901 ea
    23283761 mm 8-well comb for AE-6401/WSE-11901 ea
    23289481 mm 10-well comb for AE-6401/WSE-11901 ea
    23982691 mm 12-well comb for AE-6401/WSE-1190, 2 ea1 set
    23982241 mm 14-well comb for AE-6401/WSE-1190, 2 ea1 set
    23982521 mm 18-well comb for AE-6401/WSE-1190, 2 ea1 set
    23982551 mm 21-well comb for AE-6401/WSE-1190, 2 ea1 set
    2394160Mini flat comb for 2-DE, 2 ea1 set
    2398515Comb with marker for 2-DE (1 mm thickness)1 ea
    Consult1 mm special well comb (consult)1 ea
