WSE-5650 CyanoViewSmart Ⅱ
Purpose and Application
- Fluorescence detection of nucleic acid stains (EtBr, SYBR Safe, etc.)
- Fluorescence detection of protein stains (SYPRO Ruby, etc.)
- Observation and image capture of fluorescent samples using a digital camera or smartphone
- Detection of nucleic acid and protein electrophoresis gels stained with fluorescent reagents
- Gel band excision using a transmitted light source
Features
- Lightweight and compact darkroom cabinet equipped with a cyan light source
- Safe fluorescence observation without UV exposure
- Orange filter viewing window enables direct gel observation
- Compatible with digital camera and smartphone imaging
- Peak wavelength: 505 nm
- Half bandwidth: ±25 nm
- Supports a wide range of fluorescence detection applications
Description
Data
The CyanoView series uses a cyan LED light source specially developed to efficiently excite ethidium bromide (EtBr), which is difficult to detect with conventional blue LED systems.
It enables gel band excision and imaging of EtBr-stained gels with sensitivity comparable to UV transilluminators, while avoiding UV-induced nucleic acid damage. This helps improve nucleic acid recovery after gel extraction.
In addition to EtBr, the system is also compatible with fluorescent dyes excited by blue or green LED light sources, including SYBR Green, SYPRO Ruby, and Pro-Q Diamond.

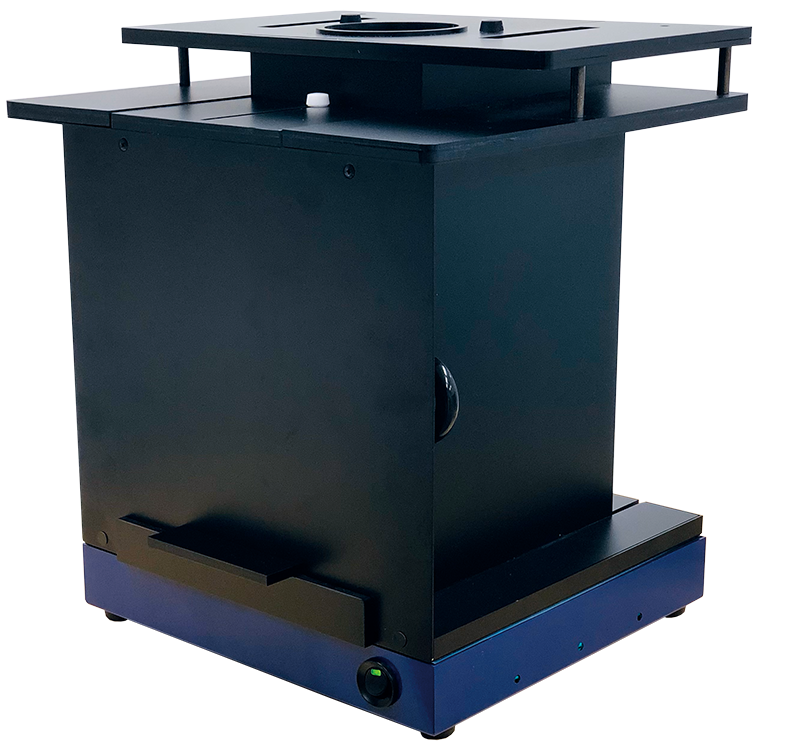

Appearance

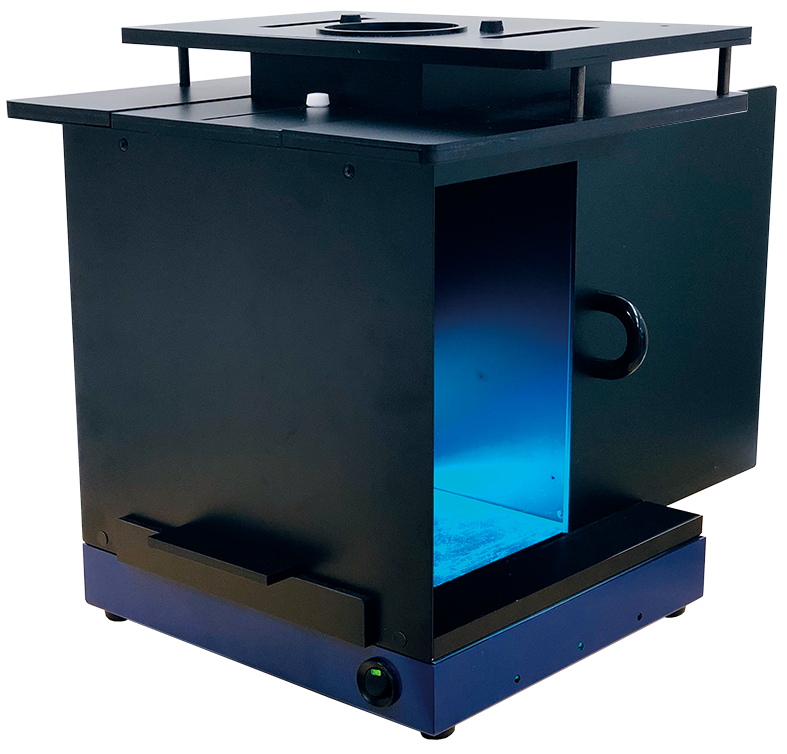

LED Light Source

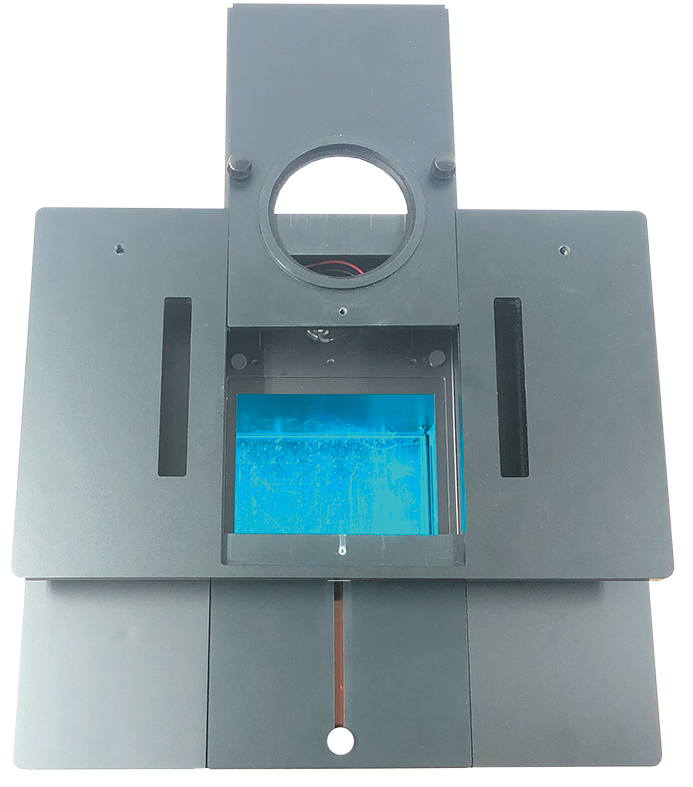

Without Filter

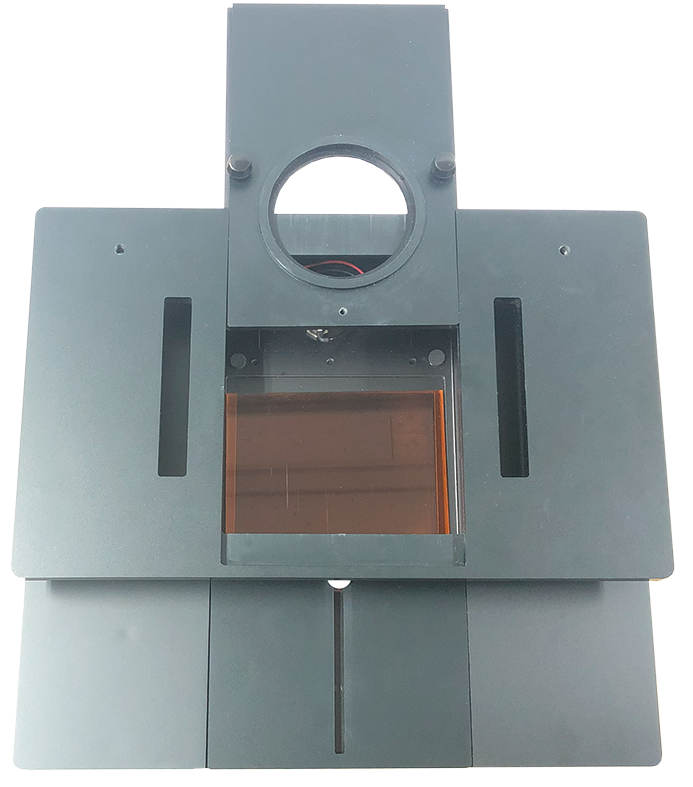

With Orange Filter
Specifications
| WSE-5650 CyanoViewSmart Ⅱ | |
|---|---|
| Light Source | Transmitted LED light source, Peak wavelength: 505 nm, Half bandwidth: ±25 nm |
| Imaging Area | 150 × 150 mm |
| Luminous Intensity | 500 μW |
| View window | Orange filter |
| Dimensions | 270 (W) × 220 (D) × 300 (H) mm |
| Weight | 5.3 kg |
| Power | DC 24 V, 0.5 A |
| AC adapter | Input: AC 100~240 V, 50/60 Hz, 50 VA Output: DC 24 V, 1 A |
| Environmental temperature | 20~30℃ |
| Composition | WSE-5630 CyanoViewSmart Ⅳ Main unit × 1, Light-shielding cabinet × 1, Gel tray × 1, AC adapter × 1 |
Ordering Information
| Code No. | Description | Unit |
|---|---|---|
| 2008189 | CyanoViewSmart Ⅱ | 1 set |
| 23008172 | WSE-5630 CyanoView Ⅳ | 1 pk |
| 2008177 | Smartphone Adapter (for 5700/5650) | 1 pk |
