WSC-2100 MyMiniAspirator

A compact aspirator for efficient liquid handling in cell culture media exchange, ELISA plate washing, and other applications.

Maximum suction pressure: –650 mbar (–0.65 MPa)
Maximum suction rate: 8 L/min (liquid: 2 L/min)
Glass reservoir capacity: 1 L
Includes standard accessories: multiple suction nozzles and silicone tubing
Backflow-prevention valve: prevents liquid return for safe and reliable operation

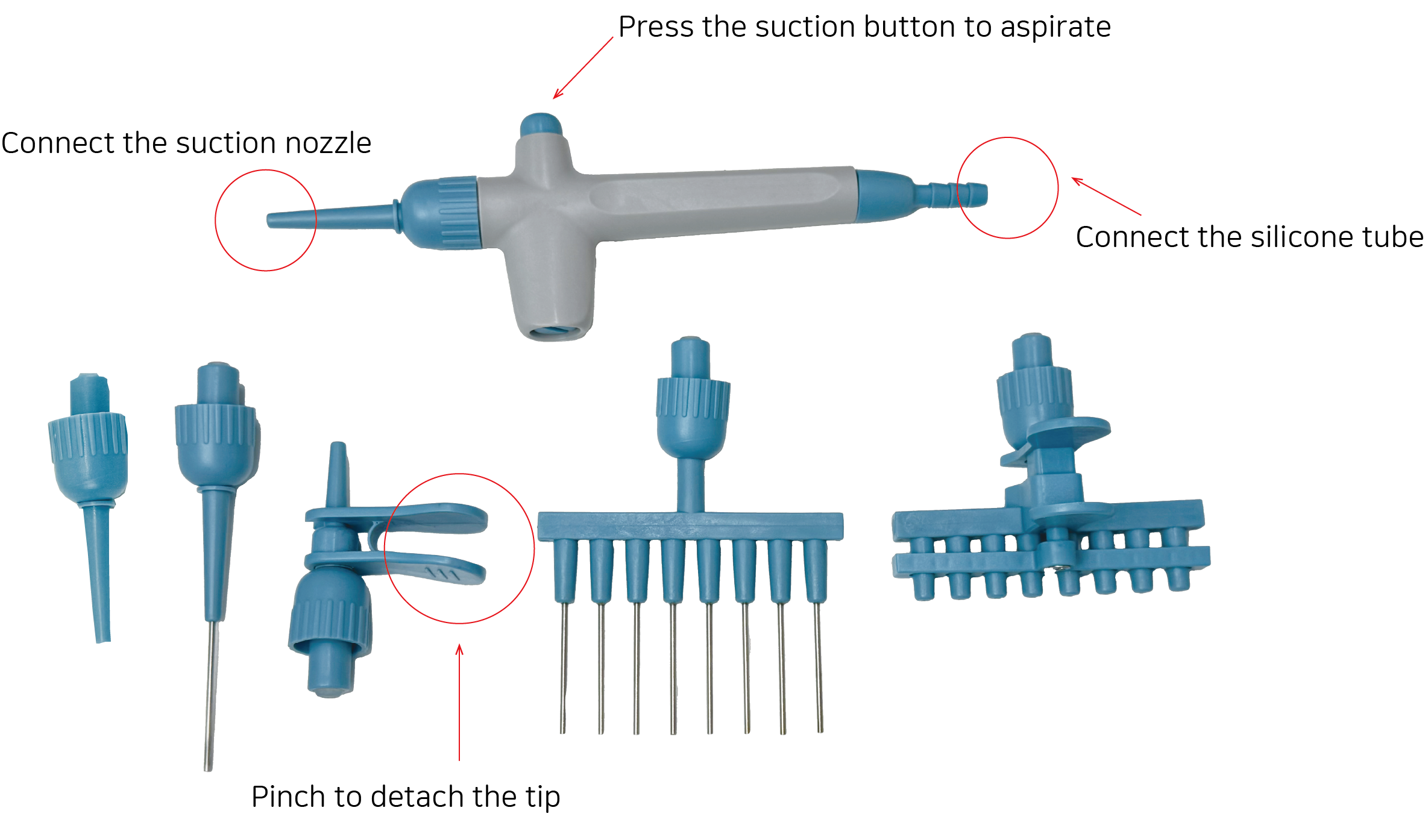

We offer a total of six suction nozzles.
Among them, the hand-held operator is ergonomically shaped to fit comfortably in the hand, allowing suction only while the suction button is pressed.
Two types of suction heads are available—1-channel and 8-channel—and each type comes in both a flame-sterilizable version and a version compatible with 200 µL tips.
All options are ideal for experiments requiring sterility, such as cell culture media exchange. In addition, the 8-channel head fits perfectly onto 96-well plates, making it highly efficient for high-throughput tasks such as ELISA plate washing.

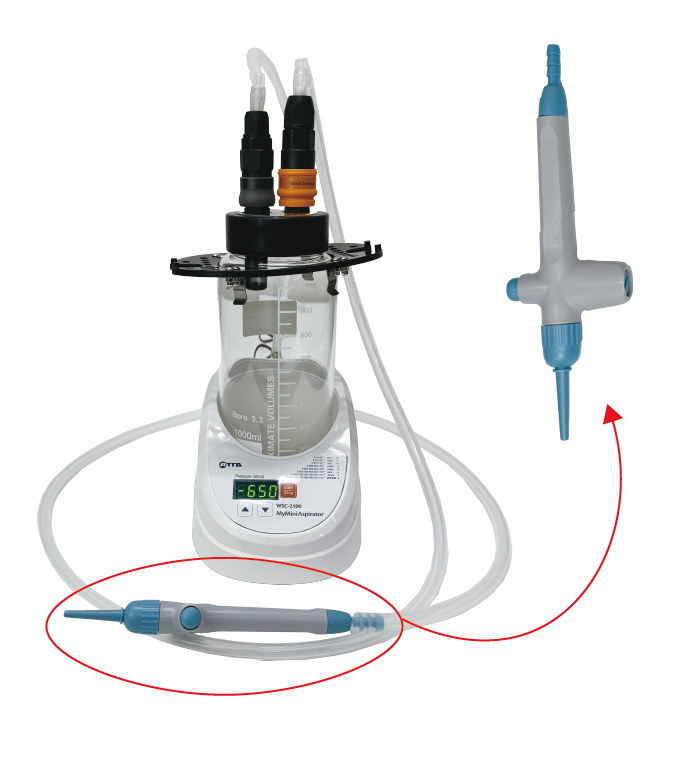

Suction Nozzle A – Hand-Hold Operator and Suction Nozzle D – Suction Head
The hand-hold operator allows suction only while the suction knob is being pressed.

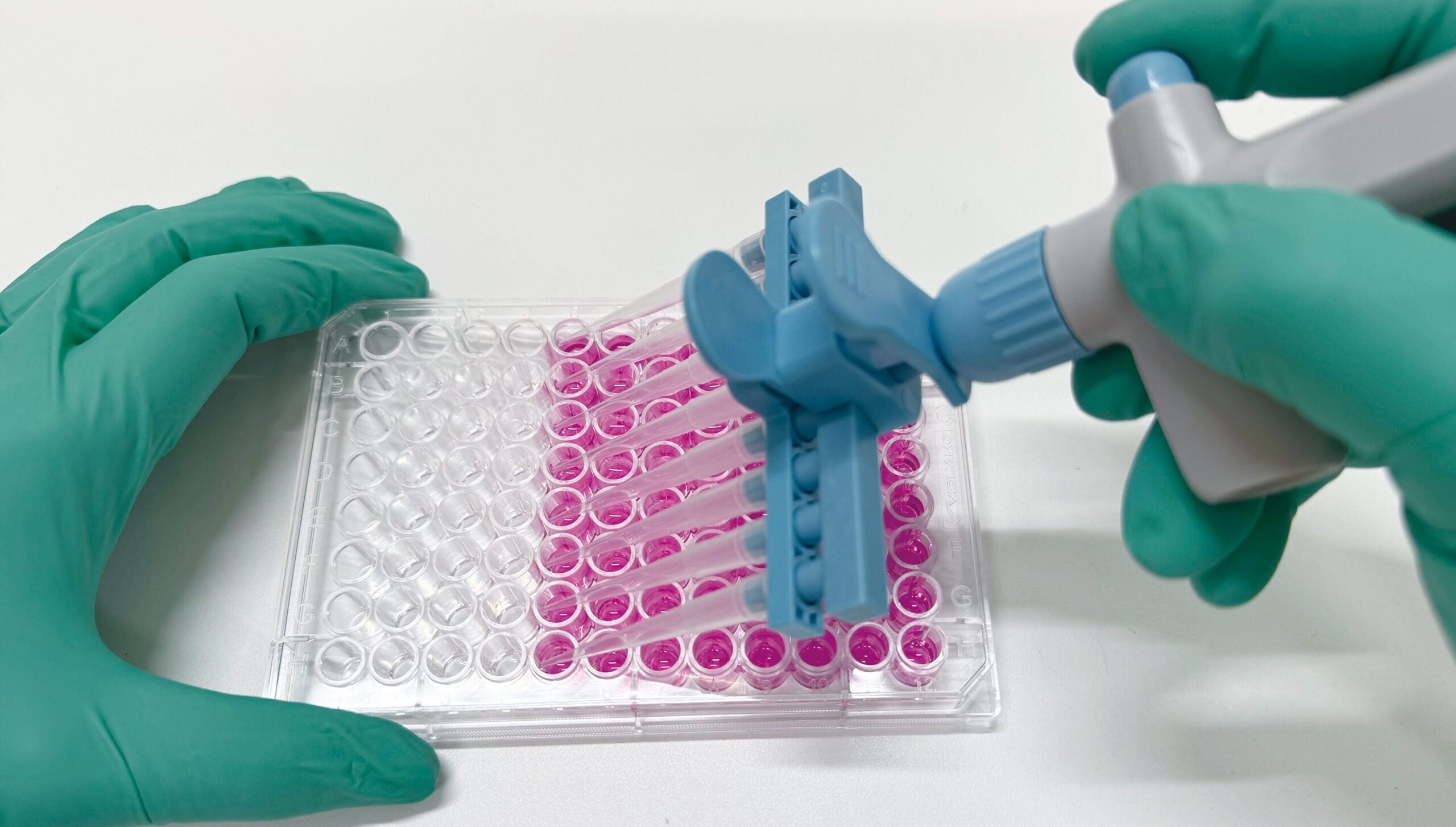

Suction Nozzle B – 8-channel Tip-Mount Suction Head
This head can hold eight tips, enabling simultaneous suction for 8-tube strips or 96-well plates.

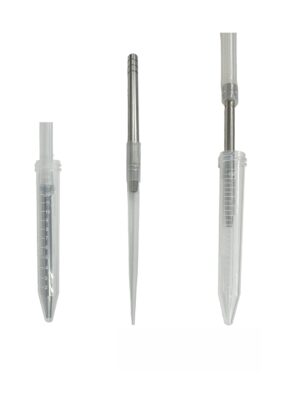

Suction Nozzle E – Tip-Mount Suction Head
When used with sterile tips, it is suitable for operations inside a clean bench.

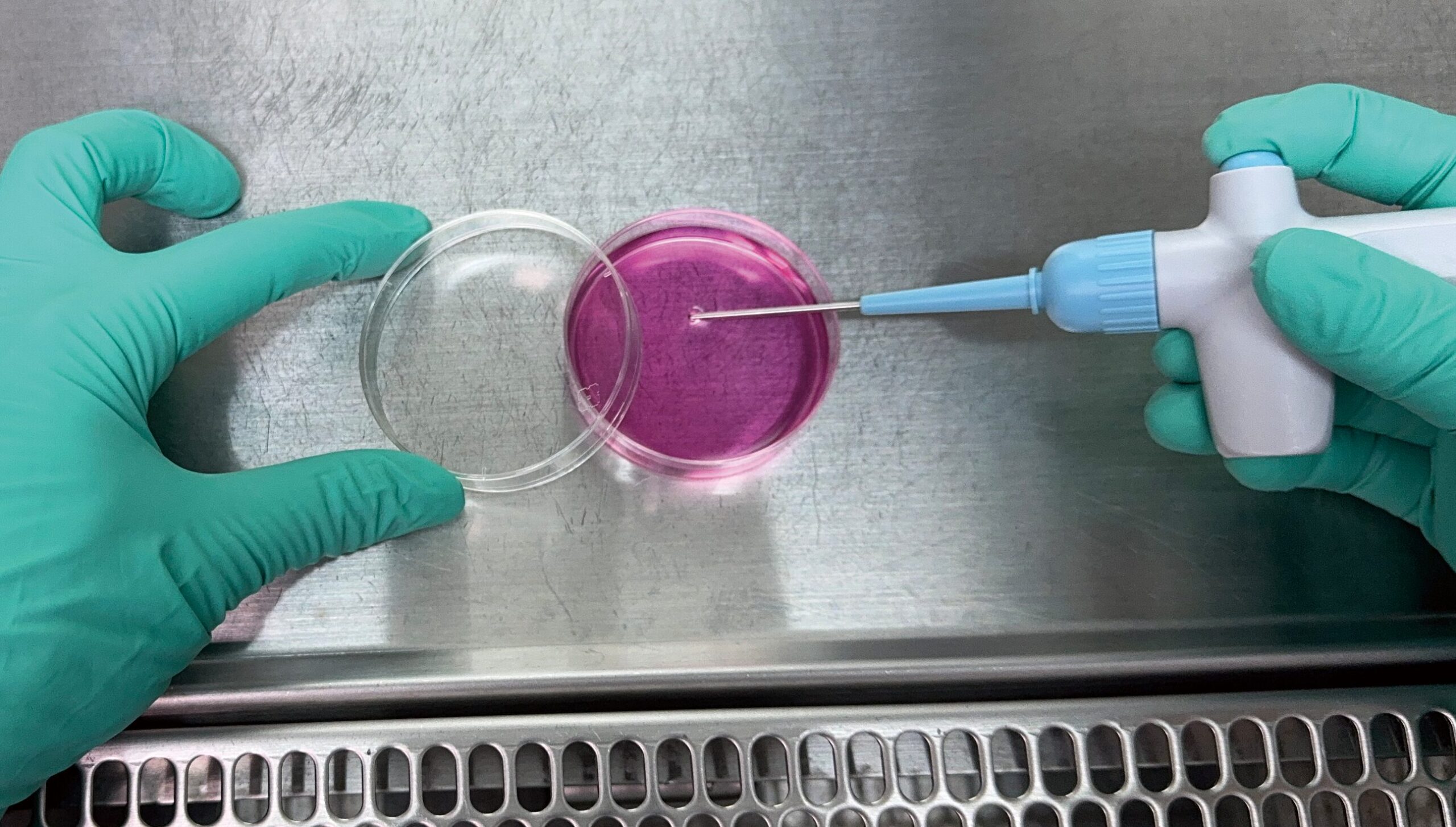

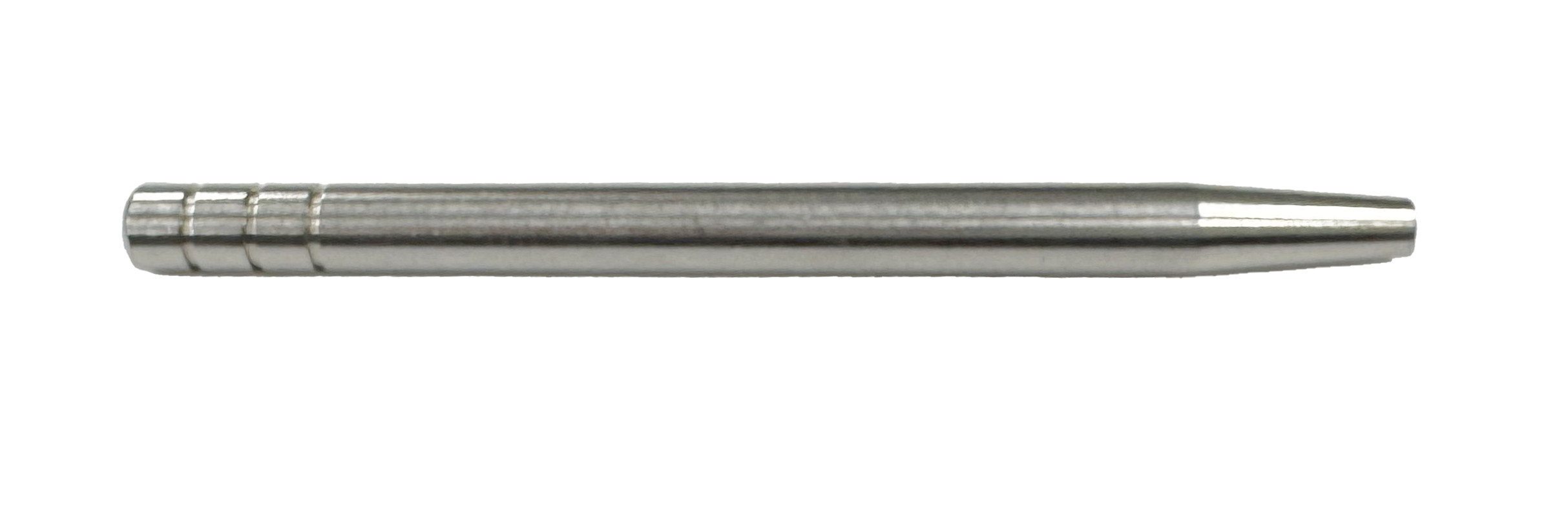

Suction Nozzle F – Stainless Suction Head
The stainless-steel tip provides excellent heat resistance and allows direct-flame sterilization.

Overflow Protection
When the waste bottle becomes full, the float-type ball valve automatically stops liquid from entering the pump, ensuring safe and reliable operation.

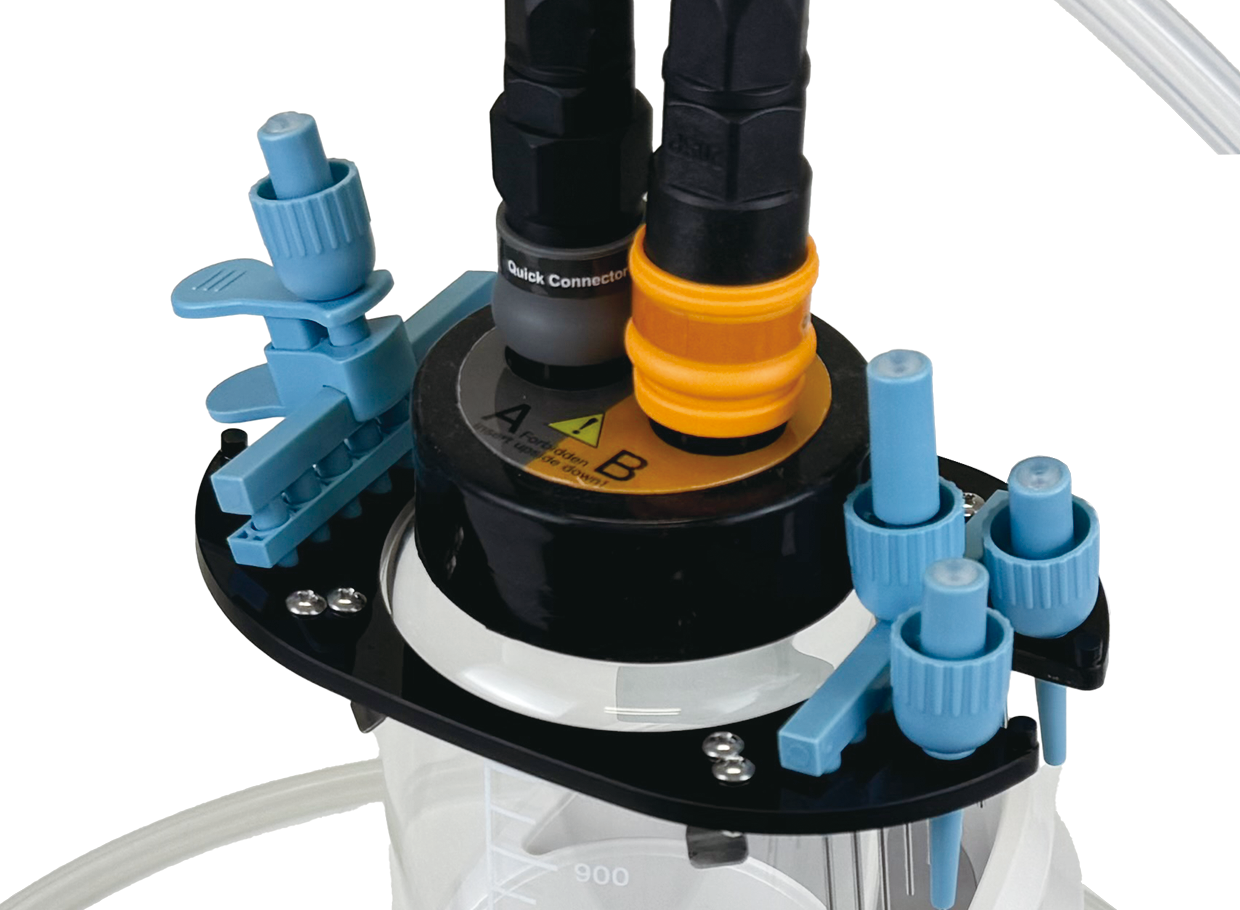

Dedicated Holder for Organized Storage
With the included holder, you can neatly store unused suction nozzles, keeping them organized and easy to access while preventing loss.

DOWNLOAD

	WSC-2100 MyMiniAspirator
Suction Speed	◆ Approx. 8 L/min (when air is used as standard) ◆ Approx. 2 L/min (measured using distilled water at 25°C)
Maximum Suction Pressure	-650 mbar (–0.65 MPa)
Negative Pressure Adjustment Range	-30 to –650 mbar
Power	Input: AC 100–240 V, 0.6 A Output: DC 12 V, 0.8 A (AC adapter)
Power Consumption	15 W
Dimensions	130 (W) × 288 (D) × 338 (H) mm
