WSE-7016 EzStandard Native

Purpose and Application

• Molecular weight standard for Native-PAGE

Features

• Covers a wide molecular weight range with 9 bands (20–1236 kDa)
• Ready-to-use: pre-prepared and directly applicable
• Approximately 100 applications (based on 5 μL per mini-slab gel)
• Compatible with multiple electrophoresis methods: Native-PAGE, BN-PAGE, HR CN-PAGE
• Applicable to various gel systems: Tris-Gly, Bis-Tris, Tris-Acetate

Data

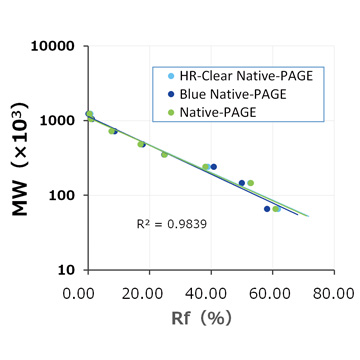

Electrophoresis Data Examples (Native-PAGE, BN-PAGE, HR CN-PAGE)

A Native-PAGE molecular weight marker covering a wide range from 20 to 1,236 kDa.

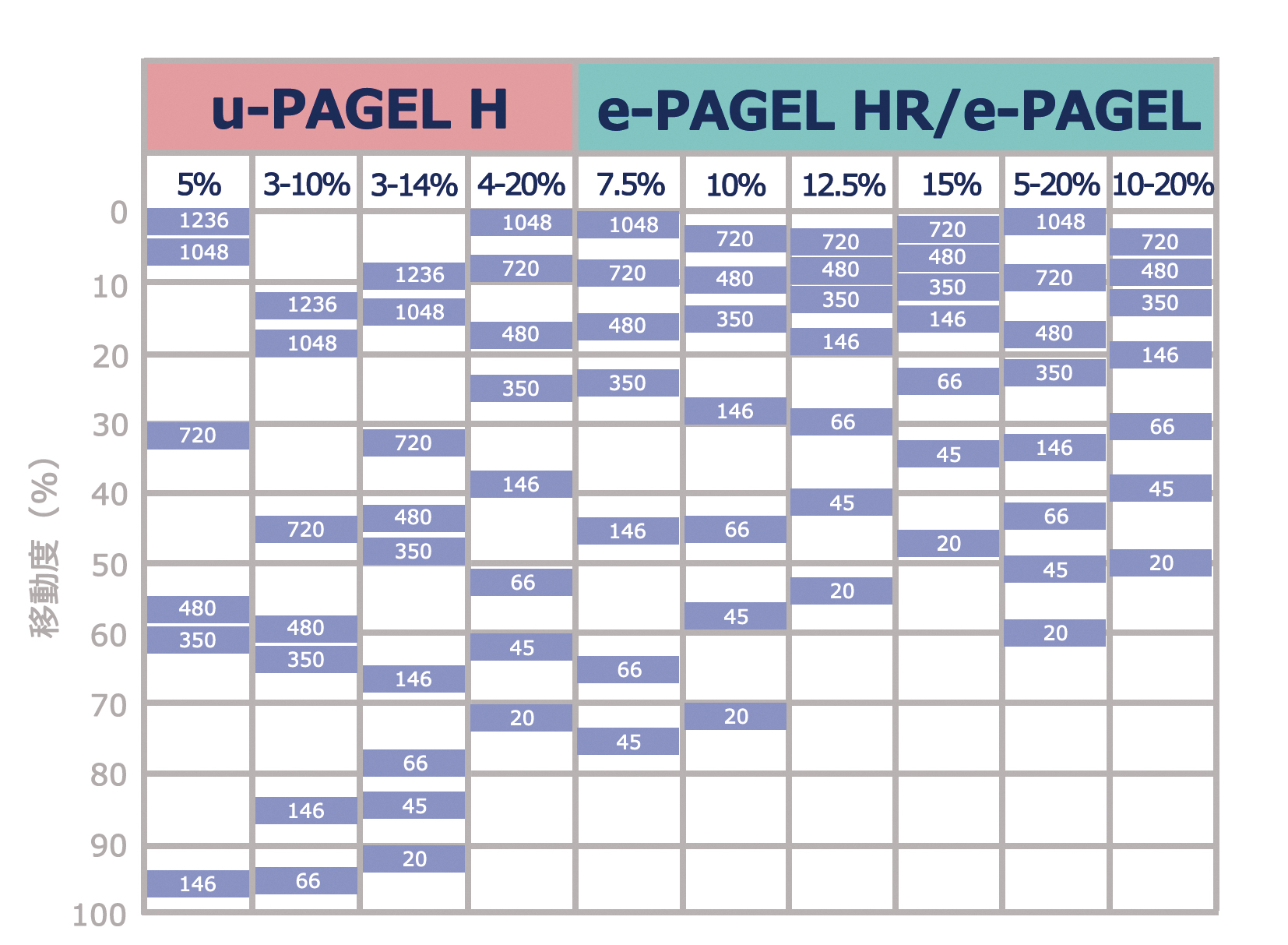

The above diagram shows a schematic representation of the migration pattern of EzStandard Native separated by Native-PAGE. Each value indicates the molecular weight (kDa) of the corresponding band.

ATTO Molecular Weight Standard Selection Guide

The sample volume depends on the detection method. The number of uses is provided as a guideline.

Storage conditions: Store at −20 °C or below for up to one year (unopened). For more detailed product information, please refer to each product page.

¹ Staining with fluorescent dyes such as SYPRO Ruby or Oriole.

² Fluorescent detection may be possible depending on the fluorescence wavelength, filters, and antibodies used. When excited with red fluorescence, green and blue bands can be detected.
