WSP-3310 PeristaQuantumPump
Purpose and Application
- Improved stability, reproducibility, chemical resistance, flow rate, operability, and external control functions
- Digital new peristaltic pump
- Full support for bio-production and research processes
Features
- Automatic operation enables timer liquid feeding and fixed volume liquid feeding
- Compatible with various solutions by using olefin tube with high chemical resistance and durability
- Adoption of stepping motor improves durability and extends lifespan
- One-touch tube attachment/detachment allows quick replacement
- Achieves fixed-quantity liquid transfer with high flow rate accuracy and flow stability
- Easy calibration with semi-automatic operation
Description
Composition

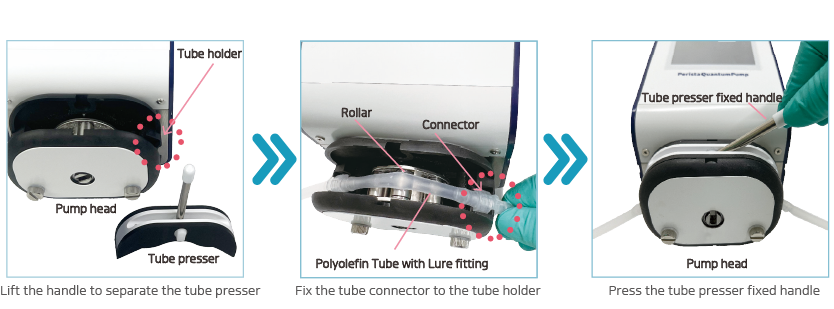

Convenient tube setting
Easy operation
Continuous liquid delivery
The liquid is delivered at the set flow rate, and it stops when you tap the stop button.
Volumetric liquid delivery
The liquid is delivered at the set flow rate, and when the set volume is reached, the liquid delivery stops automatically.
Timer liquid delivery
The liquid is delivered at the set flow rate, and when the set time is reached, the liquid delivery stops automatically.
Maximum liquid delivery
The liquid will be delivered at maximum flow rate and will stop when you tap the stop button.
Simple calibration with semi-automatic operation
Set the solution to be delivered and set a measuring cylinder or similar on the discharge side.
The amount of solution is measured after delivery is complete. The weight of the delivered solution can also be measured and converted from its specific gravity.
Enter the amount of liquid transferred on the numeric keypad and confirm.
Operation Video
Brochure
Specifications
| WSE-3310 PeristaQuantumPump | |
|---|---|
| Channels | 1~2 channels |
| Flow rate | i.d. 2 mm, o.d. 4 mm: 0.01~13 mL/min i.d. 4 mm, o.d. 6 mm: 0.01~40 mL/min |
| Flow stability | ±1% / h (after stabilization of a tube with an i.d. 4 mm and an o.d. 6 mm) |
| Lifting height of pump | Extrusion more than 21 m, Suction 6 m |
| Roller | 6 pcs (SUS 304) |
| Tube | ATTO PeristaQ dedicated standard polyolefine tube |
| Tube life | More than 7 days (continuous use, at maximum capacity) |
| Environmental temperature and humidity | 4~40℃, No condensation |
| Motor | Stepping motor |
| Touch panel | 3.5 inch pressure sensitive |
| Setting | Continuous operation: Flow rate, % of maximum flow rate, rotation speed Liquid flow direction: CW/CCW Automatic stop: Volume, Time Display: Flow rate (mL/min, mL/h), % of maximum flow rate, rotation speed, actual flow rate, timer (remaining time / remaining volume) |
| Materials | AL, SUS, ST, PET/GF, POM |
| Power (input) | AC 100-240V, 50/60 Hz |
| Power (output) | DC 24V, 1.5A |
| Power consumption | 13.3VA (1ch), 14.4VA (2ch) |
| Dimension | Main body : 110 (W) x 200 (D) x 130 (H) mm Adaptor : 36 (W) x 96 (D) x 31 (H) mm |
| Weight | Main body : 2.6 kg Adaptor : 0.14 kg |
| Components | WSP-3310 (1ch) : Main body 1 unit, 82mm Polyolefine Tube with Lure fitting 4/6 1 pcs, Olefin tube 4/6 1m 1 pcs, AC adaptor 1 unit WSP 3310-2 (2ch) : Main body 1 unit, 82mm Polyolefine Tube with Lure fitting 4/6 2 pcs, Olefin tube 4/6 1m 2 pcs, AC adaptor 1 unit |
Ordering Information
| Code No. | Description | Unit |
|---|---|---|
| 1221430 | WSP-3310 PeristaQuantumPump | 1 set |
| 1221431 | WSP-3310-2 PeristaQuantumPump (2ch) | 1 set |
| 1221441 | Pump Head (for WSP-3310) | 1 set |
| 1221465 | 82mm Polyolefine Tube with Lure fitting 2/4 (for WSP-3310) | 10 pcs / 1 pk |
| 1221466 | 82mm Polyolefine Tube with Lure fitting 4/6 (for WSP-3310) | 10 pcs / 1 pk |
| 1221462 | Olefin tube 2/4 (5m) (for WSP-3300/3310) | 1 pcs |
| 1221464 | Olefin tube 4/6 (5m) (for WSP-3300/3310) | 1 pcs |
| 1221446 | Power switch | 1 set |
| 1221414 | PQP Support Program | 1 set |
