WSE-1030 Compact PAGE Neo
Purpose and Application
- Separation of Protein, purity determination, estimation of purified product and expressed protein
- SDS-PAGE (SDS-polyacrylamide gel electrophoresis)
- Native-PAGE (Non-denatured polyacrylamide gel electrophoresis)
- DNA-PAGE(DNA-polyacrylamide gel electrophoresis)
- For screening of your target protein expression
- Protein or Nucleic Acid electrophoresis for entry-level experiment and students
Features
- Compact-sized, gel-dedicated powered electrophoresis device
-
Fastest electrophoresis time: only 10 minutes (standard: 30 minutes)
-
Equipped with six output modes
-
“Slow start” function ensures clear and sharp electrophoretic patterns, even at high speeds
-
Large, easy-to-read panel with simple operation; compatible with both ready-made and homemade gels
-
Compatible with SDS-PAGE, Native-PAGE, and DNA-PAGE
-
Reduces electrophoresis buffer and sample usage, contributing to cost savings
- Compatible caster : AE-7310 Compact Gel Cast 0.75 mm, WSE-1091 Compact gel Cast 1 mm
Description
Power Supply Connection for Electrophoresis Equipment
- Connecting is easy—just attach the dedicated power supply to the electrophoresis tank to complete the setup.
- No lead wires are required, so experiments can be conducted in a small space.
- The power supply is equipped with a magnetic sensor that detects whether the safety cover is open or closed, ensuring safe operation.
User-Friendly Panel, Simple Operation
- The bright, backlit screen makes it incredibly easy to use.
- Simply select the electrophoresis conditions and press the start button.

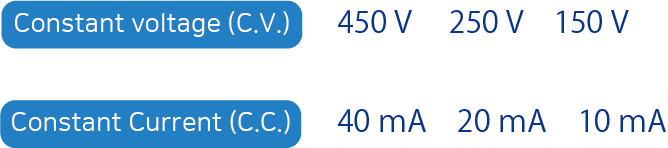

6 output modes
- There are six preset output modes designed to ac
commodate various types of gels and electrophoresis conditions.
Method
- Add electrophoresis buffer to the lower chamber.
2. Set the gel in place.
3. Press the plate to secure the gel.
4. Add electrophoresis buffer to the upper chamber.
5. Load the electrophoresis samples.
6. Turn on the power.
7. Set the electrophoresis conditions.
8. Start electrophoresis.
Achieve clear, high-resolution patterns with just 10 minutes of electrophoresis
(A) The image above shows the electrophoretic pattern obtained using c-PAGEL Neo 10% under high-speed conditions (450 V) with a standard current of 20 mA per gel. As shown, with a sufficient amount of running buffer, a clear and undistorted electrophoretic pattern is achieved—even after just 10 minutes of electrophoresis. Maintaining a constant temperature on both sides of the gel minimizes disruptions in the electrophoretic pattern, such as “smiling” caused by heat generation.
(B, C) Compact PAGE Neo features a slow start function in constant voltage mode. This function allows samples to enter the gel gradually, preventing band smearing even under high-voltage electrophoresis and resulting in clear, well-defined patterns. It also facilitates the entry of high-molecular-weight proteins into the gel, enabling the formation of clear, sharp bands even in Native PAGE.
Operation Video
WSE 1030_CompactPAGE Neo_How to use
- Compact PAGE Neo is a compact size gel electrophoresis system built-in power supply for compact size (60 x 60 mm) polyacrylamide gels. It is equipped with six types of output modes, so various electrophoresis such as SDS-PAGE and Native PAGE can be performed by changing the gel concentration and electrophoresis buffer.
Specifications
| WSE-1030 Compact PAGE Neo | |
|---|---|
| Plate size | 76 (W) x 4~5 (D) x 70 (H) mm |
| Gel size | 60 (W) x 0.75 or 1.0 (D) x 60 (H) mm |
| Output range | Select a pre-programmed mode (see below): Constant Voltage Mode: 150 V / 250 V / 450 V (includes slow start function) Constant Current Mode: 10 mA / 20 mA / 40 mA * Step function available (combines two output modes) |
| Number of gels | 1 gel |
| Buffer volume | 245 mL/chamber(135 mL for upper chamber, 110 mL for lower chamber) |
| Plate setting | Dedicated wedge-shaped plate presser |
| Material | Power supply: ABS, sheet metal Electrophoresis tank: acrylic, polycarbonate |
| Power supply | Settings: Turn output ON/OFF with the START/STOP button. Use the SELECT button and the up/down buttons to choose the output mode and set the electrophoresis time. Timer: 1–90 min countdown display; count-up display when the timer is off (HOLD). Display;LCD: Shows set time and output mode,LEDs (blue, red, yellow, green): Light up or flash when powered; flash when an error occurs. Alarm: Sounds when output stops, time is up, or an error is detected. |
| Safety function | A magnetic sensor in the power supply detects the opening and closing of the safety cover, and the safety function automatically stops output in case of an open or short error. |
| AC adapter | Input: 100-240 V, 50 Hz/60 Hz Output: 24 V/2.5 A |
| Composition | Main unit (electrophoresis tank, plate holder, power supply, AC adapter) |
| Dimenstions | 204 (W) x 70 (D) x 130(H) mm |
| Weight | 0.63 kg (without accessories) |
Ordering Information
| Code No. | Description | Unit |
|---|---|---|
| 2322252 | WSE-1030 Compact PAGE Neo | 1 set |
| 2322254 | WSE-1030W Compact PAGE Neo (with gel casting kit) | 1 set |
| 2322251 | H Plate Holder for WSE-1010/1025/1030/1040, 2/pk | 1 pk |
| 2393634 | CP-075 0.75 mm Plate Set (CAB-075&CB-00) | 1 pk |
| 2393635 | CAB-075 0.75 mm Notched Glass Plate, 2/pk | 1 pk |
| 2393637 | CB-00 Plain Glass Plates, 2/pk | 1 pk |
| 2393690 | CP-10 1 mm Glass Plate Set (CAB-10&CB-00) | 1 pk |
| 2393691 | CAB-10 1 mm Notch Glass Plate, 2/pk | 1 pk |
| 2394065 | 2-D flat Compact Comb, 2/pk | 1 pk |
| 2393695 | CP10-12 1 mm 12-well Smiling-less Compact Comb, 2/pk | 1 pk |
| 2393640 | CP075-12 0.75 mm 12-well Smiling-less Compact Comb, 2/pk | 1 pk |
| 2393689 | AC adapter for WSE-1030/1040 (24V 2.5A) | 1 pk |
