ML-10 Glass Plate
Purpose and Application
- The wide gel plates “MLAB-12” and “MLB-02”, as well as the plate set “ML-10” are designed for casting polyacrylamide gels with dimensions of 140 × 80 mm.
Features
-
Wide Gel Glass Plate Set
-
For casting 140 × 80 mm polyacrylamide gels.
- Compatible electrophoresis apparatus: ATTO Wide Gel Size Electrophoresis System (WSE-1170 Multi Lane Gel Chamber), ATTO Gel Caster (WSE-1195 Multi Lane Gel Cast)
Description
| ML-10 Glass Plates Set | MLAB-12 Notch Glass Plate | MLB-02 Plain Glass Plate | |
|---|---|---|---|

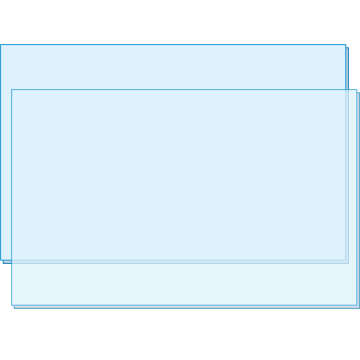

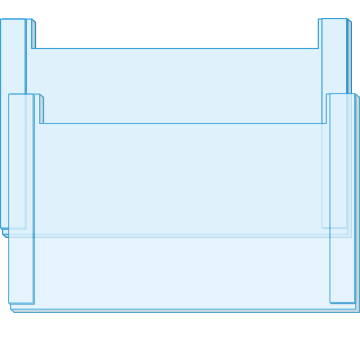

| Glass plate size | Notch Glass Plate 160 (W) x 100 (H) mm, Spacer 1 (T) mm Plain Glass Plate 160 (W) x 100 (H) mm Plate total thickness 5 mm | Notch Glass Plate 160 (W) x 100 (H) mm, Spacer 1 (T) mm Thickness 3 mm | Plain Glass Plate 160 (W) x 100 (H) mm, Thickness 2 mm |
|  |  |
|
| Component | MLAB-12 1pk MLB-02 1pk | MLAB-12 2pk | MLB-02 2pk |
Ordering Information
| Code No. | Description | Unit |
|---|---|---|
| 2398300 | ML-10 Glass Plate Set (MLAB-12 & MLB-02) | 1 pk |
| 2398301 | MLAB-12 1 mm Notched Glass Plate, 2/pk | 1 pk |
| 2398302 | MLB-02 Plain Glass Plate, 2/pk | 1 pk |
