WSE-3100 PowerStation Ghibli I

WSE-3100 PowerStation Ghibli I

Purpose and Application

  • Electrophoresis

    For high speed mode electrophoresis SDS-PAGE, Native-PAGE etc.
    Polyacrylamide gel/Agarose gel DNA electrophoresis
    Isoelectric focusing electrophoresis (IEF) of protein etc.

  • Blotting
    High speed mode blotting
    Semi-Dry blotting
    Wet blotting etc.

Features

  • The World’s first Touch panel control!
    Simple operation with big touch color screen
    Operation system with a latex glove
  • Big screen color display
    Set value · Output value · Timer · Error · Graph display etc.
    Easy to control with a simple menu screen
  • Broad output range
    Voltage 0~500V , Current 0~3000mA
    Available with High-speed mode electrophoresis and High-speed mode blotting
    Isoelectric focusing electrophoresis (IEF) of protein
  • Simple operation
    Manual mode: only to input current (or voltage) under constant current (or voltage) setting
    Method file mode: Select condition from the saved file list, Able to save 20 files: 1 file for 9 steps (Auto switching step)
    Easy mode: Self Select SDS-PAGE, Blotting, etc.
  • Other functions
    Detect an error with display on screen · Alarm notice
    Output pause: it is able to change set value during output operation
    Output graph: Able to check a Graph display of actual output values
    Power fail recovery
    Display an animal on screen during an output operation

Description

Display

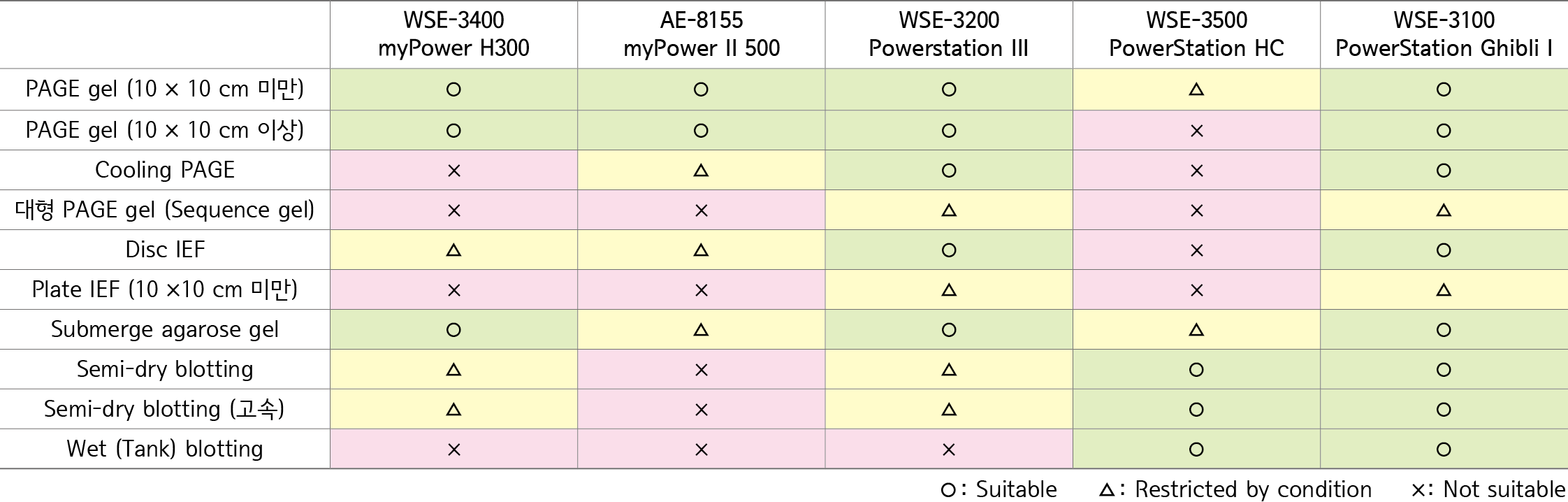

Application

Brochure

Specifications

 WSE-3100 PowerStation Ghibli I
SettingVoltage: 3-500 V (1 V step), Current: 10-3,000 mA (1 mA step), Power: 1-200 W (1 W step)
Output rangeVoltage: 0-500 V, Current: 0-3,000 mA, Power: 0-200 W
AccuracyVoltage 151-500 V: ±2%+4digits, Voltage 51-150 V: ±3%+4 digits, Voltage 0-50 V: display value±1.5 V
Current 301-3,000 mA: ±1%+5digits, Current 0-300 mA: display value±3 mA
Timer1-999 min, Count down, Timer ON/OFF
Display operation7 inch color screen pressure sensitive touch panel
OperationConstant current, voltage, power / Cross over, Manual mode, Easy mode, Method file mode: 20 files available, 1 file for 9 steps (Auto switching step)
Safety functionOpen, short and other types of abnormality detection / error display, alarm
Other functionsPause, Graph display of actual output values, Power fail recovery ON/OFF
Safety condition0-40℃, 20-90%RH (Not acceptable condensation)
PowerAC100-240 V, 50/60 Hz
Output terminal4 groups parallel output
Dimension119 (W) x 417 (D) x 224 (H) mm
Weight6 kg

Ordering Information

Code No.DescriptionUnit
2311130WSE-3100 PowerStation Ghibli1 set
