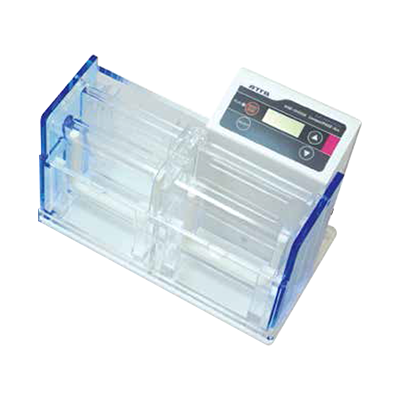

WSE-1025 cPAGE Ace Twin

Purpose and Application
- Separation of Protein, purity determination, estimation of purified product and expressed protein
- Screening, Protein or Nucleic Acid electrophoresis for entry-level experiment and students
- SDS-PAGE, nativePAGE, DNA-PAGE
Features
- The fastest electrophoresis time: 10 min (High mode)
- The system built in power supply
- Compact size, Reduce working space
- Easy operation with precast running condition
- Available for both precast gel and hand-made gel
- Cut the amount of buffer and reagent
- Compatible caster: AE-7310 Compact Gel Cast, WSE-1090 Multi Compact Gel Cast
- Compatible precast gel: ATTO Precast Compact Gel (c-PAGEL, c-PAGEL HR, cp-PAGEL)

Operation

Specifications
WSE-1025 cPAGE Ace Twin | |
---|---|
Plate size | 76 (W) x 70 (H) x 4.8 (D) mm |
Gel size | 60 (W) x 60 (H) x 0.75 (D) mm |
Number of gels | 1 or 2 gels |
Buffer volume | 170 mL (45 mL for upper chamber, 125 mL for lower chamber) per 1 gel |
Material | Chamber: Acrylic plastic and silicone |
Mode | High mode: 24 W / Std mode: 21 mA / Low mode: 10.5 mA |
Power | AC100-240V 50/60 Hz |
Dimension | 199 (W) x 108 (D) x 137 (H) mm (Without accessories and projection) |
Weight | 0.9 kg (without accessories) |
Component | Main unit, AC adaptor, Cable extension |
Ordering Information
Code No. | Description | Unit |
---|---|---|
2322245 | WSE-1025 cPAGE Ace Twin | 1 set |
2322246 | WSE-1025W cPAGE Ace Twin (with WSE-1090 Multi Compact Gel Cast) | 1 set |
2322251 | 'H' holder for WSE-1010/1025, 2 ea | 1 set |
2321659 | AC adaptor (100-250V/24V 1.5A) | 1 ea |
