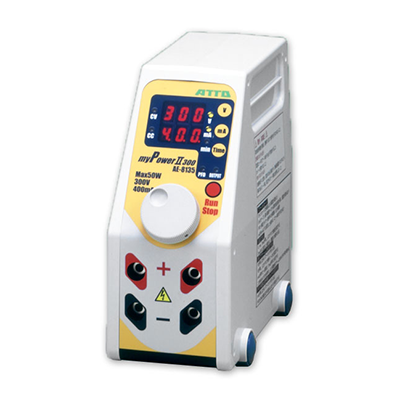

AE-8135 myPower II 300

AE-8135 myPower II 300

Purpose and Application

  • Power supply for electrophoresis use

Features

  • Compact power supplies for electrophoresis
  • Low-cost, high-tech power source for your own
  • Minimal lab space with a slim body
  • Achieves a small size, light weight, and low cost
  • Power source equipment that is compact and yet maintains performance/features
  • This product is discontinued and renewed to WSE-3400 myPower H300.

Specifications

 AE-8135 myPower II 300
FunctionConstant voltage/Constant current/Crossover
OutputVoltage: 1~300 V (Max. 50 W)
Current: 1~400 mA (Max. 50 W)
SettingVoltage: 1~300 V (1 V step)
Current: 1~400 mA (1 mA step)
Timer1~999 min (1 min step) with alarm buzzer, Continuous output available
DisplayVoltage, current, and timer: LED 3-digit
Voltage, current, timer, control mode, and output: state display (lighting lamp)
Meter accuracy1% FS ± 1 digit or better
Safety functionAutomatic output shutdown, against short or open circuit, with alarm buzzer and Err display
PowerAC 230 V, 50/60 Hz
Dimension74 (W) x 170 (D) x 170 (H) mm
Weight0.74 kg (without accessories)

Ordering Information

Code No.DescriptionUnit
2311177AE-8135 myPower II 3001 set
