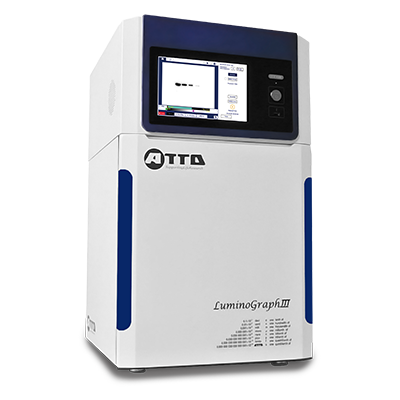

WSE-6300 Luminograph III

WSE-6300 Luminograph III

Purpose and Application

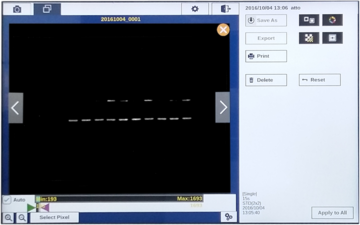

  • Western blot, Dot blot
  • DNA gel
  • In-gel fluorescence

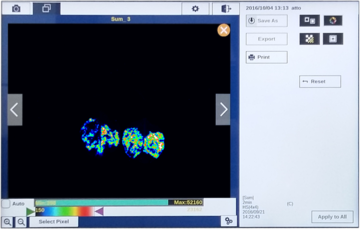

  • Bioluminescence
  • Protein gel (Colorimetric)
  • In-vivo, Ex-vivo fluorescence, Fluorescent protein (GFP)


  • User-friendly: 10-inch touch panel
  • Simple icon, available a captured image contrast adjustment
  • Auto exposing, Sum, etc. Various detection mode
  • User registration and personal folder: Simple an image file management

CS Analyzer -ATTO Original analysis software

  • Windows PC installation
  • Housekeeping protein ratio Normalization function
  • Free updating(Software) service
  • Image analysis function
  • Revision of distortion bands pattern
  • Quantitative analysis of band signal intensities




 WSE-6300C LuninoGraph III BasicWSE-6300 LuminoGraph III All-in-One
CCD resolution6 Mega pixels
Pixel density16-bit (65,535 gray levels)
Dynamic range4 orders of magnitude
Camera cooling system3 stage peltier
Camera lensF/0.8
Binning1x1, 2x2, 4x4, 6x6 binning
Imaging areaMax. 260 x 200 mm / Min. 100 x 75 mm
FocusAuto focus
Onboard computer system60GB disk storage, 3 USB ports
Data output16-bit TIFF, 16-bit CCD, 8-bit TIFF, 8-bit JPEG, 8-bit BMP
Chemiluminescence setOO
UV setX (optional)O
Cyan Epi LED setX (optional)O
Flat white LED setOO
RGB epi setX (unavailable)O

Ordering Information

Code No.DescriptionUnit
2006306WSE-6300C LuminoGraph III Basic1 set
2006301WSE-6300A LuminoGraph III All-in-One1 set
