WSE-1710 Submerge-Mini

WSE-1710 Submerge-Mini

Purpose and Application

  • Agarose gel electrophoresis system for DNA
  • Analysis of PCR-amplified fragments
  • Separation of nucleic acids

Features

Hi-Speed(High voltage150V) electrophoresis available、alarm timer function

  • 50V, 100V, 150V, constant voltage
  • Timer setting 0~99 min (0min: Free, time finishing with alarmed)
  • Safety: open cover error with alarmed. (LED shows E1 with alarmed)
  • buffer approx. 200 mL

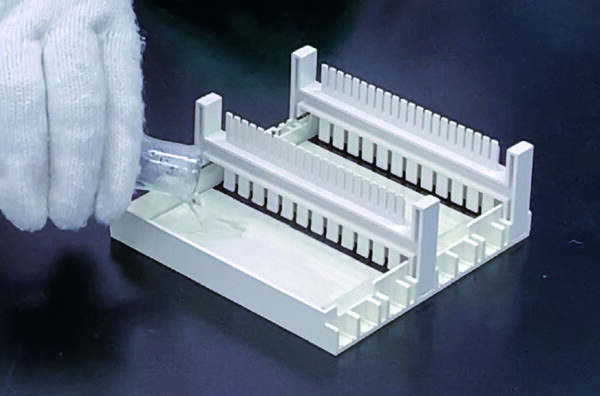

  • Gel tray L size 2pcs, S size 4pcs
  • UV transparent gel tray
  • Combs for muti-channel pipet
  • 3mm, 5.8mm double edged comb

Description

WSE-1710 Submerge-Mini

Lines on gel tray are emitted by excitation light(UV). These lines help to confirm the migration distance of each band.

「Mupid 2plus」’s tray is applicable but 「Mupid exU」’s tray is unavailable.

Tips for Agarose Gel Electrophoresis

The type of buffers used in agarose gel electrophoresis can be determined by the size of the DNA fragment and the content of the post-migration experiment.

If you want to isolate large DNA greater than or equal to 15,000 bp, use the TAE buffer. Use a TBE buffer if you don’t want to extract DNA or don’t care about recovery rates after migration with smaller DNA of 1,000 bp or less.

The above diagram shows the results of an EzDNA Ladder applied to a 1.5% agarose gel using EzRunTAE or EzRunTBE buffers and electrophoresis at 150V for 20 minutes using a Submerge-Mini. As you can see, the TAE buffer is suitable for polymer separation and the TBE buffer is suitable for low molecular separation.

Brochure

Specifications

WSE-1710 Submerge-Mini
Gel tray sizeS: 54 (W) x 60 (H) mm, L: 110 (W) x 60 (H) mm
Sample combWell: 3 mm / 5.8 mm double edged comb, 1 mm thickness, multi-pipet applicable
S: 18-well (9-well x 2) / 10-well (5-well x 2), L: 22-well / 12-well
Buffer volume200~230 mL
PowerInput: AC100-120 V, 50/60 Hz
Output: DC50V / DC100V / DC150V, 40W
Timer1~99 min (0 min: continuous), shows left time
DisplayLED (Hour, min, shows End Time, Cover open error E1)
SafetyOpen cover error (E1 displayed with alarmed)
Dimension190 (W) x 130 (D) x 60 (H) mm
Weight0.45 kg
ComponentMain unit (Electrophoresis chamber, with power supply unit and safety cover) 1 set, Gel casting kit S (Gel making stand S 1 ea, Gel tray S 4 ea, Comb S 2 ea, for 4 small gel) 1 set, Gel casting kit L (Gel making stand 1 ea, Gel tray L 2 ea, Comb L 2 ea, for 2 large gel) 1 set, Power cable 1 ea

Ordering Information

Code No.DescriptionUnit
2322100WSE-1710 Submerge-Mini1 set
2322109Gel Casting kit S & L set (Gel making stand S 1 ea, Gel tray S 4 ea, Comb S 2 ea, Gel making tray L 1 ea, Gel tray L 2 ea, Comb L 2 ea, for 4 small gel and 2 large gel)1 set
2322108Gel casting kit L (Gel making stand L 1 ea, Gel tray L 2 ea, Comb L 2 ea, for 2 large gel) for WSE-17101 set
2322107Gel casting kit S (Gel making stand S 1 ea, Gel tray S 4 ea, Comb S 2 ea, for 4 small gel) for WSE-17101 set
2322113Comb L for WSE-1710, 2 ea1 set
2322112Gel tray L for WSE-1710, 2 ea1 set
2322111Gel making stand L for WSE-17101 ea
2322118Comb S for WSE-1710, 2 ea1 set
2322117Gel tray S for WSE-1710, 4 ea1 set
2322116Gel making stand S for WSE-17101 ea
